NF1473÷1475 Chemical Plant Condenser

We plan and build heat-exchangers for the chemical industry

Click on the picture to enlarge

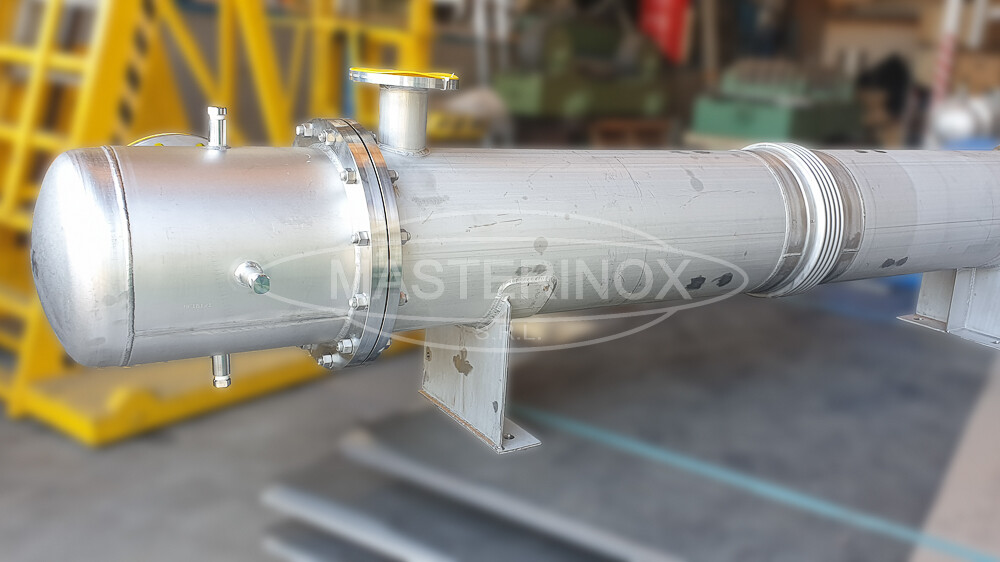

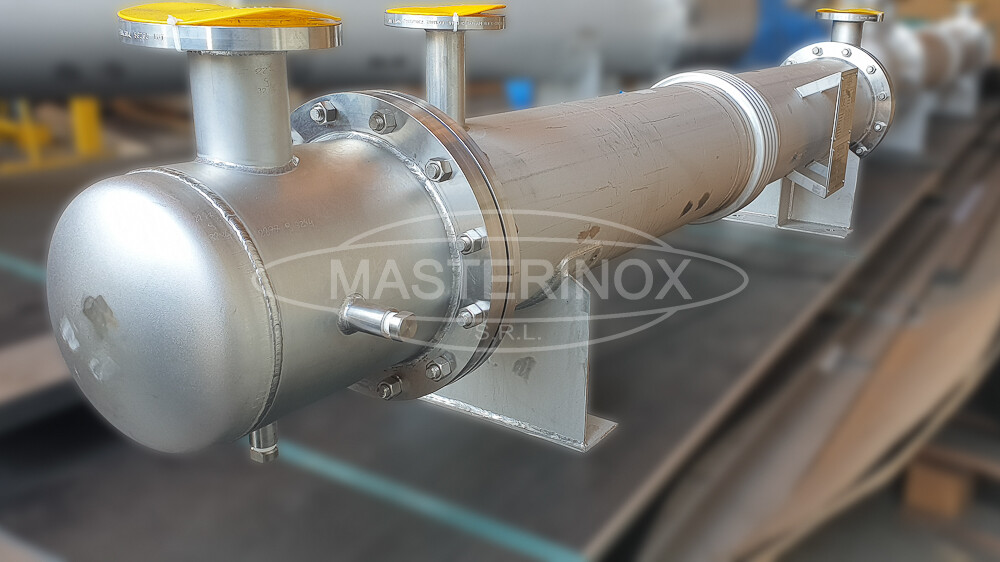

NF1473÷1475 Chemical Plant Condenser



Category: Heat-exchangers

Year of Build: 2020

Material: Alloy C22, UNS N06022

Temperature: -25/+200°C (Shell) -100/+200°C (Tubes, NF1473) -25/+200°C (Tubes, NF1474-1475)

Pressure: +8 bar g (Shell) -1/6 bar g (Tubes)

NF1473 Capacity: 150L (Shell) 130L (Tubes)

NF1474-1475 Capacity: 67L (Shell) 58L (Tubes)

NF1473 Net weight: 490kg

NF1474-1475 Net weight: 330kg
